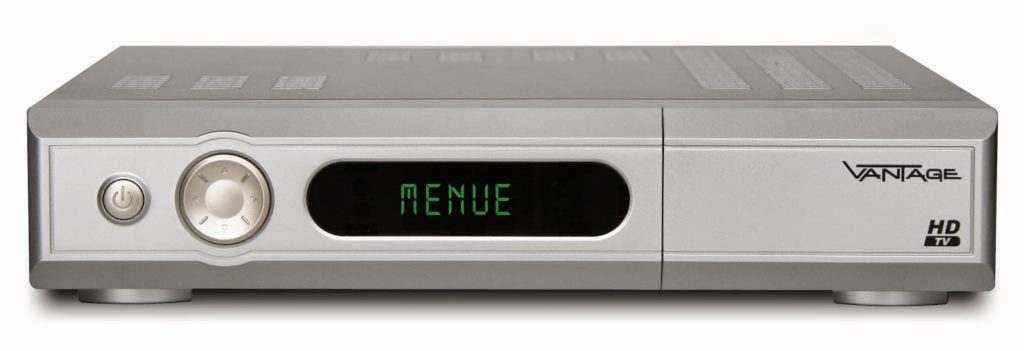

The classic. The solid HD 1100S deliberately avoids external abnormalities. The technology, however, offers more than is visible from the outside! Timeshift, Disk suitability and the electronic program guide are just a few of the many features of this HD receiver. His subtle dimensions (26 cm in width) can be accommodated easily in almost every TV rack. Like all other VANTAGE HD receiver, has also the HD 1100S using the familiar and easy-to-use menu structure VANTAGE.
The HD 1100S is equipped with a high-quality HDTV tuner. High definition television allows a much higher resolution than we have known PAL television format, thus a considerably sharper television picture. At the transmitter end which are not broadcast in HDTV signals, the HD 1100S is able to scale this high. In order for the best possible TV image is guaranteed at all times.
Recording and storage media
The recording is in digital form on a separate retrofit external hard drive which can be connected via USB port. The recording in digital format is lossless and can be played any number of times. The HD 1100S is a storage medium is connected, apply the so-called TRP format to store the movies on the hard drive. This can be by means of the DVR-Studio HD2 software separately sold the company Haenlein be converted to other formats, if necessary.

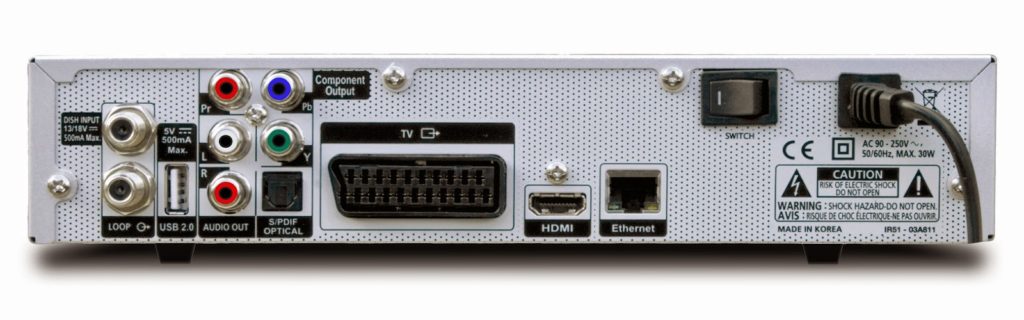

The HD 1100S has a USB port for connecting a hard disk or a UBS stick.
By pressing a button you can reach the EPG (Electronic Program Guide). In EPG provides an overview of current programs as well as a preview for the next seven days. For details on the contents of the respective programs are also available at EPG available. Do you have a matching program is found, this can be programmed in a few steps easy as recording.
The shift function allows you to time-shifted seeing broadcasts of any kind. The program can be stopped via the pause button and continue at a later date. To use the time shift function of connecting a hard drive or a USB Stick’s is required.
Display and key illumination
The VANTAGE HD 1100S has an Ethernet interface that can be used not only for data transmission, but also to stream receiver to receiver. About a network cable You can connect two VANTAGE receiver Series HD 1100/6000/7100/8000 so interconnect that provides access to the recorded programs on your VANTAGE HD 1100S with your second device (eg in the bedroom).
CI module and HD + reception
For the reception of pay-TV channels are a Conax card reader as well as an assignable CI interface is available in the HD 1100S. To receive channels of the provider HD + You need the latest firmware VANTAGE (version 2.68 (available for free in the VANTAGE Download Center)) and the Legacy CI module incl. Smartcard. This can be purchased in HD + Online Shop: HD + Online Shop.
Stations and Network Search:
During initial installation of the HD 1100S, you can select between three different pre-programmed channel lists. For Germany, Austria and Switzerland, these lists are already stored on the device. For the channel search uses the HD 1100S wish the blind scan mode. This will not be as usual scans the pre-programmed channel list during the search, but it is the whole frequency range scanned for channels. The decisive advantage here: There are found all the stations that are on the satellite available!
Connection to PC
You can also transfer your favorite recorded programs to your computer. This allows the USB-B port or the Ethernet interface. Thus, you can also watch recorded programs on a PC or, for example, transferred to DVD and burning. A similar program “DVR-Studio Pro” by Haenlein software is on the supplied CD as 60-day trial here. The current version can be found here. If you already have a PVR of another brand, you can use the special “VANTAGE-import function” of DVR-Studio. This makes it possible to watch all your movies in the future on your VANTAGE HD.
VANTAGE HD 1100S Firmware
Main firmware 2.83T-O file 02-05-2012
Main firmware 2.81T-O file, 17-10-2011
Main firmware 2.77T-O file 29-06-2011
Main firmware 2.75T-O file, 04-04-2011
Main firmware 2.71T-O (Beta) 30-11-2010
Main firmware 2.69T-O ZIP archive, 10-11-2010
Main firmware 2.68T-O 05-11-2010
Main firmware 2.66T-O 15-10-2010
VANTAGE HD 1100S Channel lists
Channel list Switzerland with 3+ 05-02-2013
Channel list for the HD series 30-04-2012
VANTAGE HD 1100S Channel List HD series
Instructions for the Unicable operation 09-11-2010
Manual for streaming English 15-01-2009
Instructions for streaming German 18-12-2008
VANTAGE HD 1100S Operating instructions
Compatible hard drives HD 7100 + HD 1100 15-12-2010
VANTAGE HD 1100S Data Sheets
Specifications HD 1100S 22-02-2011
VANTAGE HD 1100S Tools
DVR Studio HD (German) 60-day trial with full functionalities file, 10-08-2009
DVR-Studio HD2 (English) 60 Days VANTAGE trial version!) 03-12-2007
Settings Editor V2.11 for HD 1100 / HD 6000 / HD 7100 / HD 8000 29-04-2009
Channel List Editor 3.1 for HD 1100 / HD 6000 / HD 7100 / HD 8000 24-08-2008
