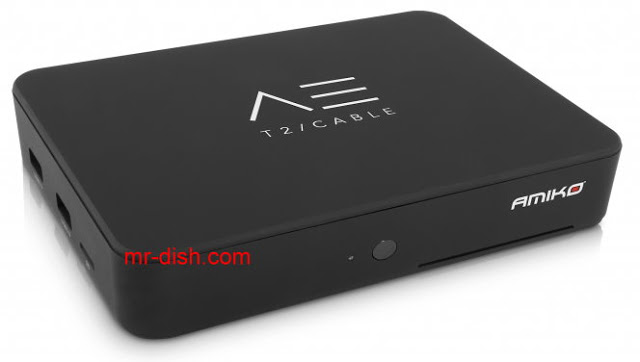

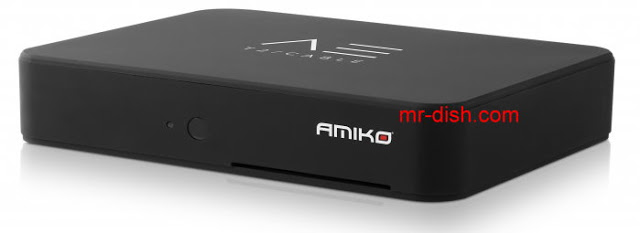

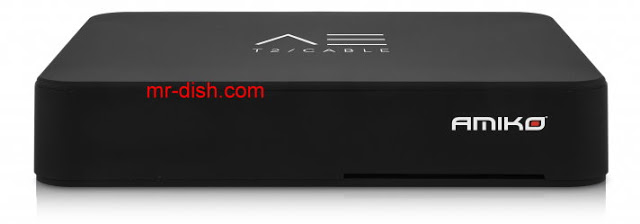

AMIKO A3 T2/C
FULL HD DIGITAL SMART SET-TOP BOX & T2 TERRESTRIAL / CABLE RECEIVER

AMIKO A3 T2/C Sortware
AMIKO A3 T2/C Sortware

Features

digital satellite receiver and media player Full HD
High performance quad-core CPU
Developed by Spark 2 / Android 4.4 Kit Kat
Conax card reader integrated
Quick and easy installation
multimedia playback from an external hard drive, USB, network or via DLNA
Recording channels to an external hard drive, USB or network
Miracast support, and Airplay
transmission channels and remote management over LAN / Internet via the web interface
remote management and transmission channels to Android and iOS devices with Spark Player
Ethernet connection
Web browsing with support for Adobe Flash Player
Wireless-N Wi-Fi integrated
Support 3G USB modem
VPN support
Android compatible games
You can download various applications and games from the App Store Spark!
Google Play! Store available
A high-speed USB 3.0 and two USB 2.0 ports
MicroSD expansion
KODI support – Make your own Media Center
Full HD – 1080p output via HDMI
CVBS video and audio output via RCA (Jack type)
Support of DiSEqC 1.0, 1.1, 1.2 and USALS
Dolby Digital bit output via HDMI and S / PDIF
Simple software updates over the internet
Low power consumption in standby mode

AMIKO A3 T2/C Sortware
AMIKO A3 T2/C Sortware


SPECIFICATIONS

system resources

Main processor: ARM Cortex A7 1.5GHz quad-core CPU

Flash memory: 2 MB SPI NOR Flash + 8GB Nand Flash

DDR SDRAM: DDR2 1GB


Tuner and demodulation

Tuner Type: DVB-T2 / DVB-C

Frequency range: 48 ~ 862 MHz

RF input level: -80dBm to -20dBm

Antenna power: DC 5V 75mA max, overload protection

Demodulation: COFDM 1K, 2K, 4K, 8K normal and wide, normal and expanded 16K, 32K normal and extended

Symbol Input: 1.0 ~ 7.0Ms / s

Constellations QPSK, 16QAM, 64QAM, 256QAM / Both twisted and unrecognized

Protection intervals: 04/01, 19/256, 01/08, 19/128, 16/01, 1/32, 1/128

Coding rate: 1/2, 3/5, 2/3, 3/4, 5/6


Decoding audio / video

Entrance fee: max. 120 Mbit / s

Aspect ratio: 4: 3, 16: 9

Decoding MPEG-2 MP @ ML, MPEG-4 Part 10 / H.264, H.265 (only 8 bits)

Video Resolution: 720 * 480p / i, 720 * 576p / i, 1280 * 720p, 1920 x 1080i / p, 2160p

Audio Decoding: MPEG-1 Layer I / II, MPEG2 Layer II, Dolby Digital

Audio Mode: Left / Right / Stereo / Mono

Sampling frequency: 32, 44.1 and 48 kHz

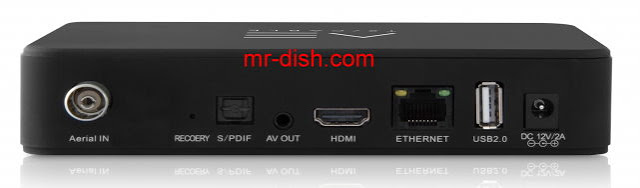

interfaces

HDMI Ver 1.4, Type A

AV: Type Jack (CVBS video and L / R Audio output)

S / PDIF output bit-stream of digital audio / Dolby Digital

Ethernet: RJ45 (10 / 100M)

WiFi: Embedded IEEE802.11 b / g / n (up to 150Mbps)

USB: 1 Type A USB 3.0 port, two USB 2.0 Type A port Micro

SD Card: Micro SD card reader

CA: Integrated Smart Card Reader Conax

AMIKO A3 T2/C Sortware

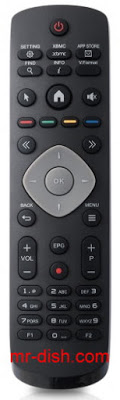

remote control

Type: Infrared


power

Type: External

Input: 110-230V AC

Output voltage: 12V DC / 2A


physical specifications

Dimensions (width x width x height): 160 mm x 120 mm x 30 mm

Working temperature: 0-45

Storage: -10 – 70

Storage Humidity: 5% – 95% RH (non-condensing)

AMIKO A3 T2/C Firmware Ver_1.0.36

Hi3796MV100_fl_ ota-15-07-2016
