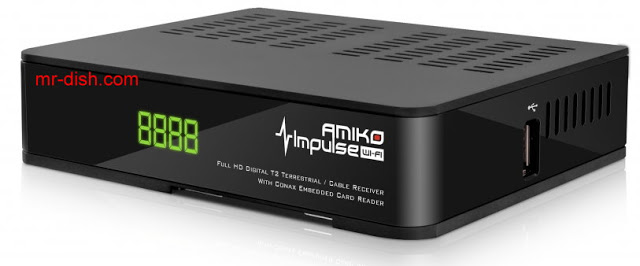

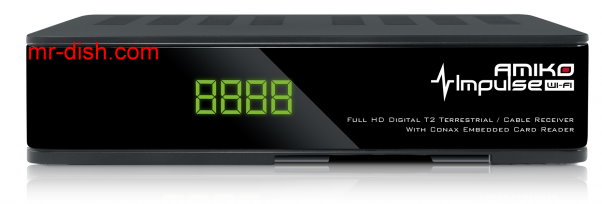

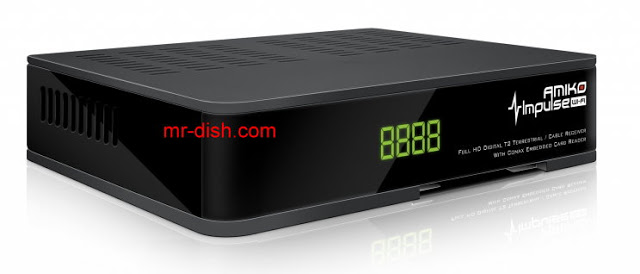

AMIKO IMPULSE T2/C WIFI
FULL HD DIGITAL SATELLITE & T2 TERRESTRIAL / CABLE RECEIVER WITH BUILT-IN WIFI

AMIKO IMPULSE T2/C WIFI Sortware , Firmware
AMIKO IMPULSE T2/C WIFI Sortware , Firmware

Features

Embedded Conax card reader
6000 channels (TV and Radio) programmable

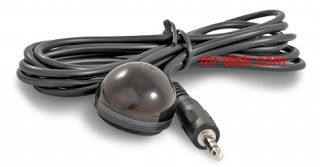

External IR sensor (included in the package)
Produced TV (sticker included in the package)
USB 2.0 high speed connection
Wireless-N Wi-Fi integrated
YouTube videos (content from third parties, subject to availability)
RSS Reader & Weather Forecast Functions (requires WiFi connection)
Output Full HD (1080p) via HDMI
Recording channels for external storage
support Timeshift
Channel recording and timeshifting Simulteniously (optional)
Switching time less than 1 second channel
True-color, easy-to-use On Screen Display (OSD)
Large format printing function (PIG)
Electronic Program Guide (EPG) for on screen channel information
Subtitles compatible
Teletext supported by VBI and software emulation
Parental by channel and program event
Information transfer channels and programs from receiver to receiver
Integrated exciting games
multilingual support
Power consumption in standby: <0.5W

AMIKO IMPULSE T2/C WIFI Sortware , Firmware
AMIKO IMPULSE T2/C WIFI Sortware , Firmware


SPECIFICATIONS

Tuner Type: DVB-T2 / DVB-C

Frequency range: 48 ~ 862 MHz

RF input level: -80dBm to -20dBm

Antenna power: DC 5V 75mA max Overload Protection

Demodulation: COFDM 1K, 2K, 4K, 8K normal and wide, normal and expanded 16K, 32K normal and extended

Symbol Input: 1.0 ~ 7.0Ms / s

Constellations QPSK, 16QAM, 64QAM, 256QAM / Both turned and Non-Recorded

Protection intervals: 04/01, 19/256, 01/08, 19/128, 16/01, 1/32, 1/128

Coding rate: 1/2, 3/5, 2/3, 3/4, 5/6


system resources

Main Processor: Dual Core 494MHz / 337MHz

Flash Memory: 64MBits

DDR RAM: 1024Mbits


Decoding of MPEG TS A / V

Transport Stream: MPEG-2, H.264

Admission: Max.120Mbit / s

Aspect Radio: 4: 3, 16: 9 Letter Box

Decoding MPEG-2 MP @ ML, MPEG-4 Part 10 / H264

Video Resolution: 720 * 480P / I, 720 * 576P / I, 1280 * 720p, 1080i, 1920 * 1920 * 1080p

Audio Decoding: MPEG-1 Layer I / II MPEG-2 Layer II, Dolby Digital

Audio Mode: Left / Right / Stereo / Mono

Sampling frequency: 32, 44.1 and 48 kHz

AMIKO IMPULSE T2/C WIFI Sortware , Firmware


Power

Input voltage: 12V DC

Power consumption: up to 18W

Standby Power Consumption: <0.5W

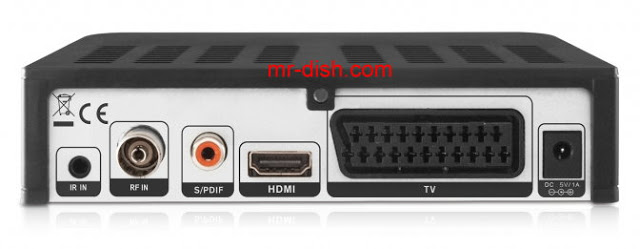

A / V input / output data

SCART: RGB / CVBS output video / audio output L / R

USB: One USB 2.0 slot

AMIKO IMPULSE T2/C WIFI Sortware , Firmware

S / PDIF Coaxial

HDMI: ver1.4, Type A

Infrared Port: Internal and type of cat

Wi-Fi: Built 802.11 B / G / N


physical specifications

Size [W * H * D]: 144mm * 40mm * 110mm

Net weight: 0.25kg

Working temperature: 0 ° C ~ + 45 ° C

Storage: -10 ° C ~ + 70 ° C

Storage Humidity: 5% ~ 95% RH (non-condensing)

AMIKO IMPULSE T2/C WIFI Firmware Ver_2.3.09 (Conax)

AMIKO IMPULSE T2/C WIFI Firmware Ver_2.2.79 (Conax)

AMIKO IMPULSE T2/C WIFI Firmware Ver_2.2.75 (Conax)

AMIKO IMPULSE T2/C WIFI Firmware Ver_2.2.68 (Conax)
