AMIKO MINI HD RE
FULL HD DIGITAL SATELLITE RECEIVER & MEDIA PLAYER

AMIKO MINI HD RE mr-dish.com
AMIKO MINI HD RE mr-dish.com

Features

Embedded Conax card reader
6000 channels (TV and Radio) programmable
Transmit TV and radio channels to your Android devices via the local network
Two USB 2.0 high speed connections
(Only Ralink RT5370 chip) Ethernet connection and USB support WiFi
YouTube videos
RSS Reader and Weather Forecast Functions (Ethernet or WiFi connection required)
DiSEqC 1.0, 1.1, 1.2 and USALS compatible
Output Full HD (1080p) via HDMI
Recording channels for external storage
support Timeshift
Channel recording and timeshifting Simulteniously (optional)
Switching time less than 1 second channel
True-color, easy-to-use On Screen Display (OSD)
Large format printing function (PIG)
Electronic Program Guide (EPG) for on screen channel information
Subtitles compatible
Teletext supported by VBI and software emulation
Parental by channel and program event
Information transfer channels and programs from receiver to receiver
Integrated exciting games
multilingual support
Power consumption in standby: <0.5W

AMIKO MINI HD RE mr-dish.com
AMIKO MINI HD RE mr-dish.com


SPECIFICATIONS

Tuner and demodulation

Tuner Type: DVB-S / DVB-S2

Input Connector: F-type connector, female

Signal level: -65 dBm to -25

LNB Power & Polarization: Vertical: + 13V / + 14V,

Horizontal: + 18V / + 19V

AMIKO MINI HD RE mr-dish.com

Max. 400mA

Overload protection

22KHz Tone Frequency: 22 ± 1 kHz

Control DiSEqC: version 1.0, 1.1, 1.2, USALS

Demodulation: QPSK, 8PSK

Input symbol rate: 2-45 Mbps,

FEC: 1/2, 2/3, 3/4, 5/6, 7/8 and Auto


system resources

Main Processor: 400 MHz CPU-based

Flash Memory: 64MBits

DDR RAM: 1024Mbits


Decoding of MPEG TS A / V

Transport Stream: MPEG-2, H.264

Admission: Max.120Mbit / s

Aspect Radio: 4: 3, 16: 9 Letter Box

Decoding MPEG-2 MP @ ML, MPEG-4 Part 10 / H264

Video Resolution: 720 * 480P / I, 720 * 576P / I, 1280 * 720p, 1080i, 1920 * 1920 * 1080p

Audio Decoding: MPEG-1 Layer I / II MPEG-2 Layer II, Dolby Digital

Audio Mode: Left / Right / Stereo / Mono

Sampling frequency: 32, 44.1 and 48 kHz


power

Input voltage: 12V DC

Power consumption: up to 18W

Standby Power Consumption: <0.5W

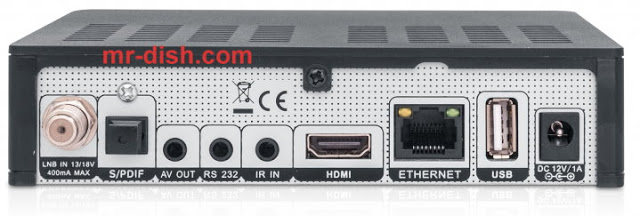

A / V input / output data

AV Output: RCA jack (CVBS Video & Audio L / R)

USB: two USB 2.0 slots

S / PDIF: Optical

HDMI: VER1.3, Type A

Ethernet: 10 / 100M RJ45

RS232: Outlet


physical specifications

Size [W * H * D]: 144mm * 40mm * 110mm

Net Weight: 0.5kg

Working temperature: 0 ° C ~ + 45 ° C

Storage: -10 ° C ~ + 70 ° C

Storage Humidity: 5% ~ 95% RH (non-condensing)

AMIKO MINI HD RE TV Radio to Andriod Streaming App
