AMIKO HD 8140 T2/C Software , Firmware Download

0
1326

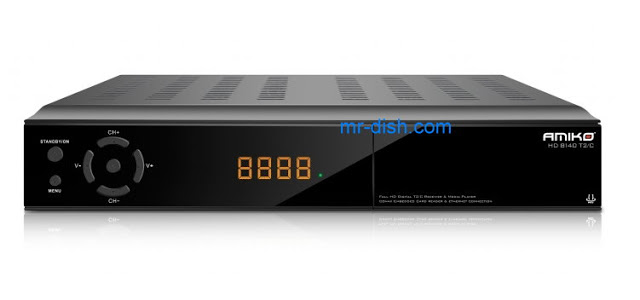

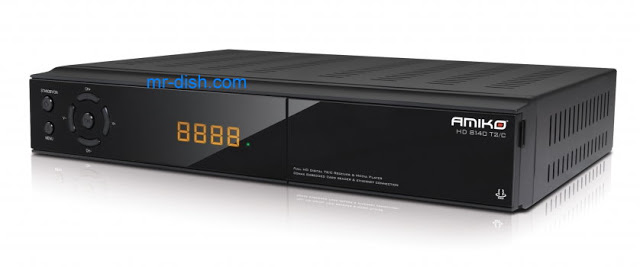

AMIKO HD8140 T2/C

FULL HD DIGITAL T2 TERRESTRIAL / CABLE RECEIVER WITH CONAX EMBEDDED CARD READER

AMIKO HD8140 T2/C Software , Firmware Download
AMIKO HD8140 T2/C Software , Firmware Download

Features

Conax card reader integrated
5000 channels (TV and Radio) programmable
USB 2.0 high speed connection
Ethernet and USB WiFi (Ralink RT5370 chip only)
YouTube videos
RSS Reader and Weather Forecast Functions (Ethernet or WiFi connection required)
S / PDIF output for digital audio or Dolby Digital Bit Stream
Output Full HD (1080p) via HDMI
Recording channels for external storage
support Timeshift
True-color, easy-to-use On Screen Display (OSD)
Large format printing function (PIG)
Electronic Program Guide (EPG) for on screen channel information
Subtitles compatible
Teletext supported by VBI and software emulation
Parental by channel and program event
Information transfer channels and programs from receiver to receiver
Integrated exciting games
multilingual support
4-digit LED display
RTC (Real-Time Clock)
Power consumption in standby: <0.5W

AMIKO HD8140 T2/C Software , Firmware Download

SPECIFICATIONS

Tuner & Demodulation
Tuner Type: DVB-T2 / DVB-C
Frequency Range: 48~862MHz
RF Input Level: -80dBm to -20dBm
Antenna power output: DC 5V at max 75mA, Overload protection
Demodulation: COFDM 1K, 2K, 4K, 8K normal and extended, 16K normal and extended, 32K normal and extended
Input Symbol Rate: 1.0 ~ 7.0Ms/s
Constellations: QPSK, 16QAM, 64QAM, 256QAM / Both rotated and non-rotated
Guard Intervals: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
Code Rate: 1/2, 3/5, 2/3, 3/4, 5/6

System Resources
Main Processor: 400MHz based CPU
AMIKO HD8140 T2/C Software , Firmware Download

Flash Memory: 64MBits
DDR RAM: 1024Mbits
Power Supply
Input Voltage: Free Voltage (100-250V AC 50/60Hz)
Power Consumption: 30W Max
Stand-By Power Consumption: <0.5W

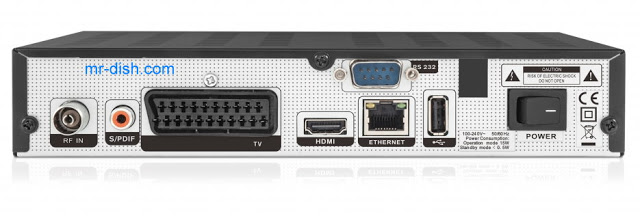

A/V & Data Input/Output
TV-SCART: Video CVBS/RGB output,
Audio L/R output
S/PDIF: Coaxial, Digital Audio or Dolby Digital Bit Stream Output
RS-232C: Transfer rate 115.2Kbps,
9 pin D-sub Type
USB: One USB 2.0 slots
HDMI: VER1.3, Type A
Ethernet: 10M RJ45 (optional)

Physical Specifications
Size[W*H*D]: 220mm*40mm*160mm
Net Weight: 1.0KG
Operation Temperature: 0°C~+45°C
Storage Temperature: -10°C~+70°C
Storage Humidity: 5%~95% RH (Non-Condensing)


——————————————————————–
AMIKO HD 8140 FIRMWARE Ver_1.5.64 Conax

AMIKO HD 8140 FIRMWARE Ver_1.5.52 Conax

AMIKO HD 8140 FIRMWARE Ver_1.5.46 Conax

AMIKO HD 8140 FIRMWARE Ver_1.5.45 Conax

AMIKO HD 8140 FIRMWARE Ver_1.5.43 Conax

AMIKO HD 8140 FIRMWARE Ver_1.5.38 Conax

AMIKO HD 8140 FIRMWARE Ver_1.5.35 Conax

AMIKO HD 8140 FIRMWARE Ver_1.5.28 Conax

AMIKO HD 8140 FIRMWARE Ver_1.5.15 Conax

AMIKO HD 8140 FIRMWARE Ver_1.4.84 Conax

AMIKO HD 8140 FIRMWARE Ver_1.4.49 Conax

AMIKO HD 8140 FIRMWARE Ver_1.4.03 Conax

AMIKO HD 8140 FIRMWARE Ver_1.3.94 Conax
