GigaBlue HD X1
High Definition Digital Satellite Receiver
Information
Gigablue sets new standards. Equipped with many technical characteristics of the receiver meets the needs of the user. During the period of high-definition televisions, navigate with high-quality Gigablue image resolution in HD format in the eye. Fast switching is another remarkable feature.
Particularly user friendly shows the GigaBlue in its operating options. Thus, the receiver can, for example, via the GigaBlue Player application completely comfortable with the smartphone or remote tablet without taking control of the remote control of the device.
Main Features
Particularly user friendly shows the GigaBlue in its operating options. Thus, the receiver can, for example, via the GigaBlue Player application completely comfortable with the smartphone or remote tablet without taking control of the remote control of the device.
Main Features
Fast processor with 512MB DDR3 RAM
2 x USB (2x back)
1x E-SATA
1 x HDMI
1 x Cardreader slot
1 x Irda out
optical
ethernet (RJ-45/100Mbps)
Basic system configuration
CPU
BCM 7362
2K DIMIPS 750MHz CPU
ROM NAND: SLC 256MB
RAM DDR-3, 512MB

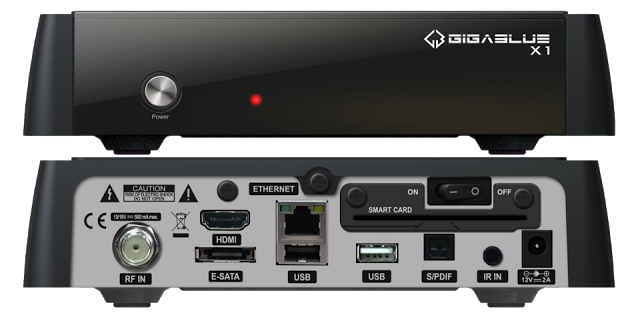

Front
IR Receiver 1 x IR
Button 1 x Button
Indecater LED 1
Front Display –
USB 2.0 –
CI-Modul –
Rear
DVB -S2 IN 1 x Input
DVB -S2 OUT –
PnP Tuner 1 –
PnP Tuner 2 –
SmardCard 1x Cardreader
3×2 RCA –
HDMI 1 x HDMI Output
E-SATA 1xE_SATA
USB 2.0 2 x USB Host
S/PDIF 1 x Optical
RS-232 1 x RS-232
Ethernet 1 x RJ45:100Mbps
Power Switch 1 x I/O Switch
DC Input Jack 1 x Jack
Power
E-PSU 12V/3A
