TechniSat DIGIT ISIO STC Receiver Software, Tools

0
377

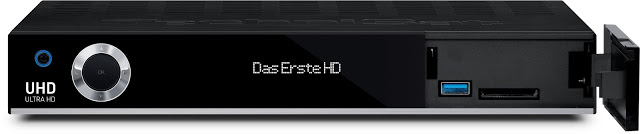

TechniSat DIGIT ISIO STC 0100/4757 – black

High Defenition Digital Satellite Receiver

Technisat DIGIT ISIO STC Receiver Software

Technisat DIGIT ISIO STC Receiver Software

Technisat DIGIT ISIO STC Receiver Software

Technical Data



EAN4019588107571
Item no.0100/4757
Weight (Box)1.53 kg Weight934 g
Device (W x H x D)28.60 x 4.60 x 15.50 cm Box37.20 x 8.40 x 17.60 cm Colourblack
Card reader


SD card1

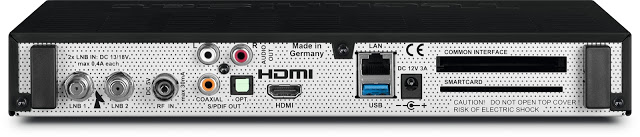

Connections


HDMI (out)1 (4K 50/60p / HDCP 2.2)
Common Interface Plus (CI+)
1 Smartcard reader1 Digital electric audio output1
Digital optical audio out1
Audio out analogue1 (rechts / links) F socket2
IEC-Connector1
Decryption system


Conax  Nagravision  CI+
Environment


Humidity10 … 75 % Ambient temperature5 … 35 °C
Hotel mode


Protected access to hotel mode
Customisable start screen
 Lockable volume
Menu locking  Control panel lock
 Integrated LED clock
Selectable start source
Selectable start channel
LNB


Vertical power supply14 V
Horizontal power supply18 V LNB modulation22 kHz
LNB power supplymax. 400 mA (kurzschlussfest) DiSEqC1.0 / 1.2



Total programme memory9999
Regional channel selection
Sleep timer  Alarm
OSD languagesGerman, English, French, Greek, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Spanish, Czech, Turkish, Hungarian
Picture functions


Picture in Picture (PIP) (2x SD, 2x HD, 1x UHD u. 1x HD, 1x UHD u. 1x SD, 1x SD u. 1x HD) Freeze frame  Zoom
Power consumption


Standby LED0.45 W In operation13.5 W
Power supply


Nominal voltage230 V Frequency50 Hz Mains adapterinternal
Ready for reception


HD+
sonstiges


USB2 (USB 3.0)
Supported formats & codecs


Audio-FormatsMP3, WAV, AAC, FLAC, M4A, MP2, AIFF
Picture-FormatsJPEG, BMP, GIF, PNG
Video-CodecsMPEG-4, MPEG-2, MPEG-1, H.264 (H.264/AVC Level 4.2), H.265, DivX, VC-1 Video-FormatsMP4, M4V, MKV, MOV, MPG, MTS, TS, TS4, VOB, WMV, Xvid, M2TS, AVI, ASF
TechniSat CONNECT


Control  SFI
Tuner


Tuner type3xTwin-Tuner
Reception onUHD ( H.265/HEVC), HDTV (MPEG-4), SD (MPEG-2) Input impedance75 O Demultiplexinggemäß ISO 13818-1 DVB-S tuner2
Reception range950 … 2150 MHz Viterbi rates1/2, 2/3, 3/4, 5/6, 7/8 , (autom. Anpassung) DVB-SQPSK DVB-S2 … 45
 Mbaud DVB-S28PSK-QPSK DVB-S210 … 31
Mbaud FECViterbi and
Reed-Solomon DVB-C
Tuner2 Reception range50 … 858 MHz
Demodulation16 / 32 / 64 / 128 / 256
QAM Symbol rate1.5 … 7.2 Mbaud
FECReed-Solomon (204, 188)
DVB-T Tuner2 Reception range 1174 … 230 MHz Reception range 2470 … 862 MHz DemodulationCOFDM
Transmission mode2k/8k Bitrate4.98 … 31.67 Mbit/s Voltage supply5 V
Tuner (DVB-S)


Single Cable Solution (SatCR)SCR1 = EN50494, SCR2 = EN50607
Tuner (DVB-T2)


Tuner DVB-T2DVB-T2/HEVC (H265)


TechniSat DIGIT ISIO STC Instruction

TechniSat DIGIT ISIO STC User Manual

TechniSat DIGIT ISIO STC Date Sheet

TechniSat DIGIT ISIO STC Device Software

Ver_2.68.0.7-3485b 21-03-2017

TechniSat DIGIT ISIO STC Software

Ver_2.68.0.6-3315 24-03-2015
