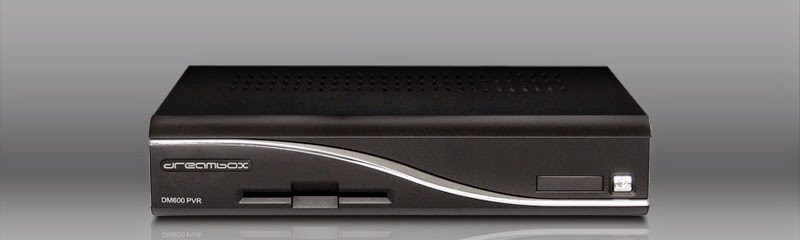

Dreambox DM600 PVR
Linux os Satellite Receiver
Feature
250 MHz PowerPC processor
Enigma, Linux operating system
Condition 2 LED
MPEG-2 Hardware decoding
Common available NIMs (DVB-S, DVB-C, DVB-T)
The tuner module, plug and play
1 x smart card reader (Dreamcrypt CA)
V.24 / RS232 interface
10 / 100Mbit interface compatible Ethernet
1 x Scart-interfaces (RGB, FBAS or S-Video)
S-Video connector
analog modem
The interface S / PDIF for digital bit stream out (AC-3)
32 MB flash, 96 MB Ram
Embedded IDE interface
Support for internal 2.5 HDD “in any capacity
unlimited channel lists for TV / Radio
channel-change time <2 January
automatic scanning service
Immediately bouquet-lists
EPG (electronic program guide)
Videotext Decoder
multiple LNB-Switching control (DiSEqC)
OSD in many languages ​​and skins support
extern12V food
DreamBox DM600 technical data
DBS-Tuner:
Frequency range 950 …. 2150 MHz
Signal Level – 65 dBm …. – 25 dBm
The signal-to-noise level of 12 dB max.
DBS-Tuner Input Connector F-Type female
Input impedance 75 ohms
AFC +/- 3 MHz
Shaped QPSK demodulation
Viterbo FEC and Reed-Solomon
Viterbirate 1/2, 2/3, 3/4, 5/6, 7/8
Skruhlenyya ratio 35%
Demultypleksyrovanye to ISO 13818-1
Video decoder:
Video Compression MPEG-2 and MPEG-1 compatible
Video Standard PAL G / 25 Hz
Video Formats 4: 3/16: 9
Letterbox for 4: 3 TV devices
Audio decoder:
Audiokompression MPEG-1 and MPEG-2 Layer I and II
Sound Mode Dual (master / slave), stereo
Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz
Analog output:
Output level L / R 0,5 Vss on 600 Ohm
THD> 60 dB (1 kHz)
Crosstalk <-65 dB
Digital Output:
The level of output 0.5 Vss to 75 Ohm
Selective Filtering data 32 kHz, 44.1 kHz, 48 kHz
S / PDIF-out optical (AC3)
Video Options:
Input level FBAS 1 Vss +/- 0,3 dB at 75 ohms
Teletext filter in accordance with ETS 300 472 Standard
TV-Scart:
Output: FBAS, RGB, S-Video
Serielle Interface RS 232
Type bidirectional RS232
The flow of 115.2 kbit / s max.
Connector SUB-D-9
Function: Firmware Updates
Ethernet:
10/100 MBit compatible interface
Function: Firmware Updates
IDE interface:
Intern for connect 2,5 “HDD
LNB Power and polarization:
LNB present 500mA max. ; Protection against short-circuit protected
LNB Supply Voltage vertical <14V without load,> 11,5V at 400mA
LNB Supply Voltage horizontal <20V without load,> 17,3V at 400mA
LNB shut-off in standby mode
Count of active satellite position:
DiSEqC 1.0 / 1.1 / 1.2 and USALS (Rotor Control)
Power consumption:
<15W / 12V
Input voltage:
DC12V +/- 15%
External supply:
Login: 110-240V AC / 50-60 Hz / 0,6A
Output: 12V = / 2A
Physical characteristics:
Ambient temperature + 15 ° C … + 35 ° C
Humidity <80%
Dimensions (W x D x H): 195 mm x 130 mm x 40 mm
Weight: 0.6 kg
Dreambox DM600 PVR Firmware 22-07-2009
Dreambox DM600 PVR User Manual English
Dreambox DM600 PVR User manula Spanish
Dreambox DM600 PVR Usermanual French
_______________________________________
Universal DreamUP Version 1.3.3.11
________________________________
RMA Onloine Service
Dream Verification
Download
________________________________
How To Upgeade Dream Box
Update Flash With Loader (Dreamup)
Requirments
Image File Youwant To Upgrade in *nif Extension
DHCP Server, configured boot loader, Serial Cable, terminal program
like Hyper Term.
Browser Network Cable< Cros Cable if you want to Coneect Box Directly With PC.
For More Protection Use Second Stage Loader its Not Broken and Present
If You Don,t Have a DHCP Server Then Put IP in Loader Serial Port Setup
Shut Down The Dream Box From Power Switch or Deep Stand By Mode
1-Press and Hold the Front Panel Lower Button
2-Still Hold the Button and power on your Box
3-“*** STOP ***” These Text appear,if other text appear like “/flash”.. this Then you press and hold wrong lower Button.Now Leave the Lower button you hold.The boot loader will gon in Waiting Mode.
4-Above the “*** STOP ***” text, there must be an IP address (four decimal values with a dot in between) appear. If there appears the string “dhcp” instead, the box still looking for a DHCP server. A little wait. If it does not change, does not do anything with the DHCP server. Make sure the network cable is connected, etc.
if it is not workin then set ip Usin Serial Terminal
Open Browser in your PC
1-In Address line enter “http://ip/” where ip must be replaced with the value in the LCD
2-Press Firmware Upgrade Button in the Bottom of page
Now Select Image file you want to Upgrad Only in .nfi Extension Not in img etc
Click the flash button and wait it maybe
Restart your box and new Image willbe apear
take
How to make manual ip in Loader Dreambox All Models(Just Click)
If You don,t have a DHCP Server, configured or Ruter No Problem and don,t Instal one.Only you need to connect a serial terminal now
That’s why you need the IP address of your Dreambox gives. Your IP I, asksomeone help please, do not know what to choose. Your computer, your “next” IP address, you can choose any IP address but can not be used by another device theIP is. Another device is used as an example, your computer’s IP address is 192.168.0.5, and you, use192.168.0.10 said. In this case, only 192.168.0.11. Or whatever. This is the only x> = 1 and <= range 192.168.0.x, I, where 254,.
Hyperterm For example, start your favorite terminal program. Com port 115200 / 8N1 set. “S” Press.
Now you should see the setup menu. It should look like the following screenshot
Press the right arrow. You are now in the network setup menu.
Using “+” or “-” you can use the “Network Type” to see the series “Manual”.
Now you can enter an IP address below. Press F9 to save your settings.
Dreambox close.
Now go back and the procedure again. “DHCP” may not be displayed, instead of the IP you entered
